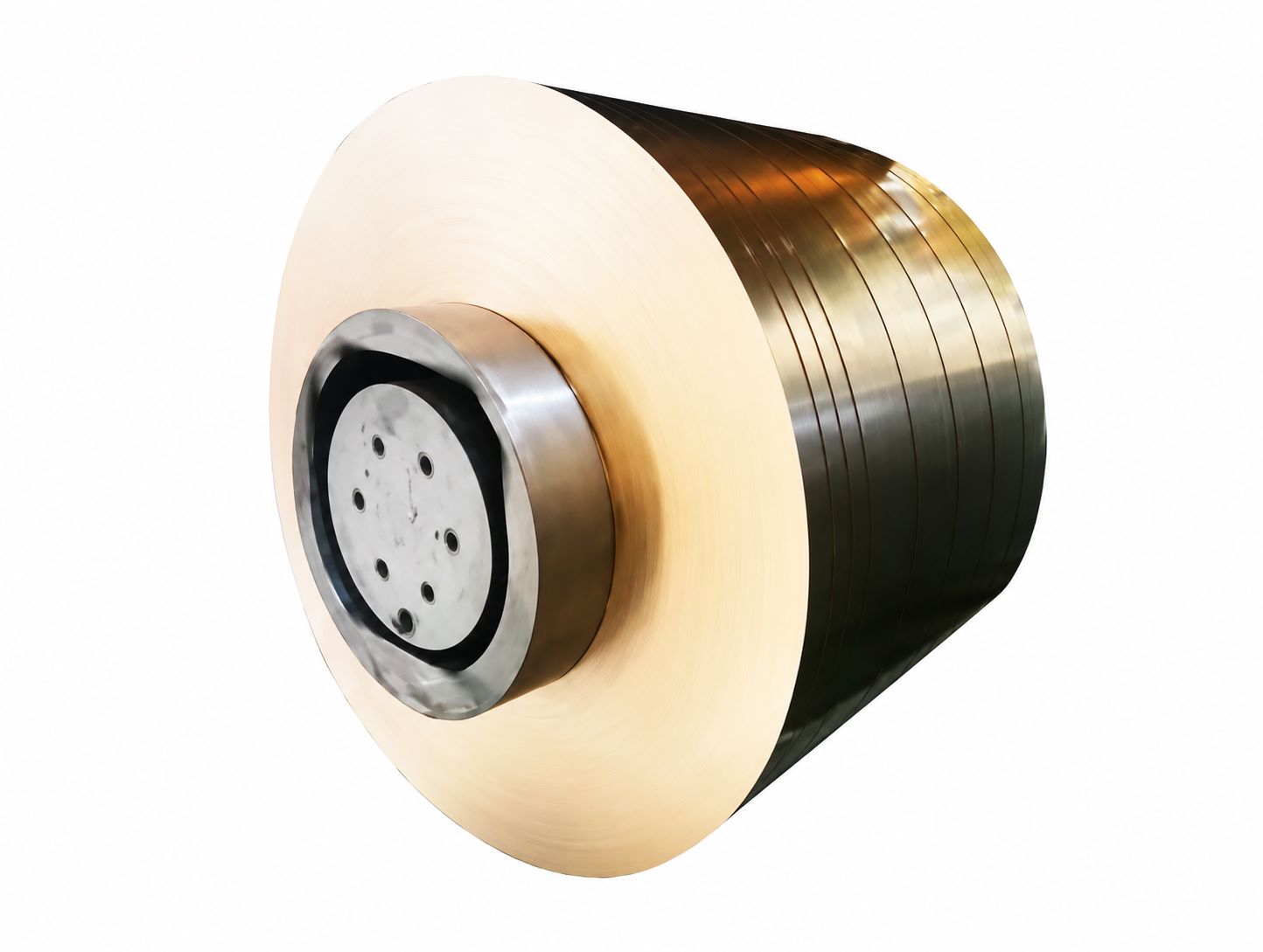

When you consider materials for high-current applications, you want reliability and performance. C5191 phosphor bronze strips stand out in this field due to their exceptional conductivity and mechanical strength. These strips offer a unique blend of properties that make them ideal for demanding environments. As industries evolve, the need for robust materials like C5191 becomes even more critical. Understanding these advantages can help you make informed decisions for your projects.
Key Takeaways
C5191 phosphor bronze strips offer superior electrical conductivity, making them ideal for high-current applications.
The mechanical strength and flexibility of C5191 ensure durability in battery connectors and energy storage systems.
C5191’s excellent corrosion resistance enhances its longevity, reducing maintenance and replacement costs.
Choosing C5191 can lead to long-term savings and improved performance in demanding environments.
Integrating C5191 into designs supports efficient current flow and reliable connections in advanced technologies.
Conductivity Benefits of C5191
Comparison with Other Alloys
C5191 phosphor bronze strips exhibit superior electrical conductivity compared to many other copper alloys. This high conductivity makes them a preferred choice in various applications. The following table highlights the conductivity values of C5191 and other commonly used alloys:
Alloy Type | Conductivity (% IACS @ 20℃) |
|---|---|
C5191 Phosphor Bronze | 14 |
Hyper Phosphor Bronze | 12 |
Standard Phosphor Bronze | 13 |
QAl9-4 Aluminum Bronze | 12-18 |
As you can see, C5191 outperforms several alternatives, making it an excellent option for high-current applications. Its high conductivity allows for efficient current flow, which is crucial in systems where energy loss can lead to performance issues.
Impact on Energy Storage Systems
In energy storage systems (ESS), the performance of materials directly influences system stability and efficiency. C5191 phosphor bronze strips play a vital role in high-power ESS due to their exceptional conductivity. You will find that these strips are commonly used in:
Connectors for battery packs
Grounding systems for electronic circuits
Shielding against electromagnetic interference (EMI)
The high conductivity of C5191 ensures minimal energy loss during operation, which is essential for maintaining the efficiency of high-current ESS systems. Additionally, the durability of C5191 contributes to the longevity of these systems, reducing the need for frequent replacements.
Experts in the field emphasize the importance of using high conductivity copper in energy storage applications. According to a recent study, “The choice of materials in energy storage systems can significantly affect overall performance. C5191 phosphor bronze stands out for its reliability and efficiency.” This statement underscores the critical role that C5191 plays in enhancing the performance of energy storage applications.
Mechanical Strength of C5191
Durability in Battery Applications
When it comes to battery applications, the mechanical strength of C5191 phosphor bronze strips sets them apart. These strips combine high tensile strength with excellent elasticity, making them ideal for environments where durability is critical. The material’s composition, which includes 6% nominal tin, enhances its mechanical properties, ensuring it can withstand the demands of modern battery energy storage systems.
Here’s a comparison of tensile strength across various copper alloys:
Material Composition | Tensile Strength (Ultimate Strength) | Applications |
|---|---|---|
C5191 Phosphor Bronze | 600-800 MPa | High-current ESS systems, battery tabs |
C510 Phosphor Bronze | 500-700 MPa | General-purpose connectors |
Standard Copper Alloy | 250-400 MPa | Low-stress applications |
C5191’s superior tensile strength ensures it can endure mechanical stress without compromising performance. This makes it a reliable choice for battery tabs and energy storage connectors, where repeated stress cycles are common. Its fatigue resistance, measured at 280 MPa after 10⁷ cycles, further underscores its durability in high-stress environments.
Note: The high elasticity of C5191 allows it to maintain flexibility in connections, reducing the risk of breakage. This property is particularly beneficial in dynamic environments where vibration fatigue can compromise connector reliability.
Performance in ESS Connectors
In energy storage systems (ESS), connectors play a pivotal role in ensuring efficient current flow and system stability. C5191 phosphor bronze strips excel in this domain due to their unique combination of mechanical strength and flexibility. These properties make them indispensable for high-current ESS systems, where reliability and durability are paramount.
The following table highlights key performance characteristics of C5191 in ESS connectors:
Performance Characteristic | Description |
|---|---|
High Strength | Enhances durability under mechanical stress. |
Fatigue Resistance | Increases longevity under repeated stress cycles. |
Customizable Formability | Allows for adaptable designs in energy storage connectors. |
Long-Term Conductivity Stability | Ensures reliable electrical connections over time. |
Vibration Fatigue Resistance | Reduces the risk of failure due to vibrations in dynamic environments. |
C5191’s mechanical strength also contributes to its ability to maintain consistent performance in high-current terminals and IP67-rated connectors. These connectors, often used in ESS, require materials that can handle both mechanical and environmental stress. The stress relaxation rate of C5191, measured at just 5% after 1000 hours at 100℃, ensures long-term stability, even under challenging conditions.
Additionally, the flexibility of C5191 phosphor bronze strips allows for innovative connector designs. This adaptability simplifies installation and enhances connector reliability, reducing maintenance needs over time. As a result, you can rely on C5191 for efficient and durable energy storage connectors in high-current applications.
Expert Insight: According to industry specialists, “The mechanical strength and fatigue resistance of C5191 phosphor bronze make it a top choice for ESS connectors. Its ability to withstand high stress and maintain conductivity ensures long-term reliability in energy storage systems.”
By choosing C5191 phosphor bronze strips, you gain a material that not only meets but exceeds the demands of modern ESS and battery technologies. Its combination of strength, flexibility, and durability ensures optimal performance in high-current applications.
Corrosion Resistance of C5191
Environmental Durability
C5191 phosphor bronze strips excel in corrosion resistance, making them ideal for various applications, especially in energy storage connectors. This alloy withstands environmental factors better than many alternatives. Its unique composition allows it to resist oxidation and chemical attacks effectively. In humid or corrosive environments, C5191 maintains its performance, ensuring long-lasting reliability.
The following table illustrates the corrosion resistance of C5191 compared to other common copper alloys:
Material | Corrosion Resistance (mm/a) | Notes |
|---|---|---|
C5191 Phosphor Bronze | ≤0.005 | Superior resistance to atmospheric, seawater, and weak acid corrosion |
C1100 Copper | Higher than C5191 | Generally lower corrosion resistance |
C2600 Brass | Higher than C5191 | Less suitable for harsh conditions |
C5191’s low corrosion rate, especially in saline environments, makes it a preferred choice for energy storage connectors. The copper content of C5191, which is over 90%, forms a protective film that effectively resists chloride and sulfate corrosion. This property ensures that your energy storage connectors remain functional and reliable over time.
Comparison with Other Copper Alloys
When comparing C5191 to other copper alloys, its longevity in energy storage connectors stands out. The following table highlights key properties of C5191 and brass in real-world applications:
Property | C5191 Phosphor Bronze | Brass |
|---|---|---|
Electrical Conductivity | ≥85% IACS | Higher than C5191 |
Elasticity | High | Moderate |
Corrosion Resistance | Superior | Standard |
Application Suitability | High-vibration environments | General use |
C5191 phosphor bronze strips resist oxidation and perform reliably in humid or harsh environments. This durability enhances connector reliability, especially in high-stress applications like energy storage systems (ESS). By choosing C5191, you ensure that your connectors can handle the rigors of demanding environments while maintaining optimal performance.
Expert Insight: Industry specialists note, “C5191 phosphor bronze’s corrosion resistance makes it a top choice for energy storage connectors. Its ability to withstand harsh conditions ensures long-term reliability.”
Cost-Effectiveness of C5191
Long-Term Savings
When you choose C5191 phosphor bronze for high-current applications, you invest in long-term savings. Its superior durability and fatigue resistance reduce the need for frequent maintenance, saving both time and money. Unlike other materials, C5191 maintains its performance even in demanding environments, ensuring that your energy storage connectors and ESS connectors remain reliable over time.
For instance, C5191’s ability to withstand mechanical stress and environmental factors extends the lifespan of components like battery tabs and terminals. This longevity minimizes replacement costs and downtime, making it a cost-effective solution for energy storage systems.
Tip: By reducing maintenance requirements, C5191 helps you allocate resources more efficiently, allowing you to focus on optimizing system performance.
Here’s a comparison of the value proposition of C5191 versus other materials in high-current connectors for ESS:
Material | Durability | Fatigue Resistance | Performance in Stressful Conditions |
|---|---|---|---|
C5191 Phosphor Bronze | Superior | High | Excellent |
Brass | Moderate | Low | Fair |
C5191 clearly outperforms alternatives, offering better long-term value in high-reliability applications.
Value in High-Current Applications
C5191 phosphor bronze delivers unmatched value in high-current applications, particularly in ESS and battery technologies. Its high conductivity ensures efficient current flow, while its mechanical strength supports innovative design and reliable installation. These properties make it an ideal material for energy storage connectors, where consistent performance is critical.
The material’s adaptability also simplifies installation processes. Its flexibility allows for customized designs, reducing the complexity of integrating components like cables and connectors. This ease of installation further lowers costs by minimizing labor and setup time.
Additionally, C5191’s resistance to vibration fatigue ensures that your ESS connectors and energy storage connectors remain stable during operation. This stability is crucial for applications like fast charging systems, where consistent contact and current flow are essential.
Key Benefits of C5191 in High-Current Applications:
Reduces maintenance costs due to its durability.
Extends the lifespan of components in demanding projects.
Enhances system reliability with superior fatigue resistance.
By choosing C5191, you gain a material that not only meets but exceeds the demands of modern ESS and battery technologies. Its combination of performance, durability, and cost-effectiveness ensures that your investment delivers maximum returns.
Expert Insight: According to industry specialists, “C5191 phosphor bronze offers unparalleled value in high-current applications. Its durability and efficiency make it a top choice for engineers and manufacturers worldwide.”
C5191 phosphor bronze strips offer unmatched performance in high-current applications, particularly in ess systems. Their superior conductivity, mechanical strength, and corrosion resistance ensure long-term reliability. As industries adopt advanced technologies like 5G and AI, the demand for high-performance materials continues to grow.
Key trends driving this demand include:
Increased deployment of 5G infrastructure and AI data centers.
Industry 4.0 advancements reducing scrap rates by 25%.
Year | Market Size (Billion $) |
|---|---|
2025 | 1.3 |
2033 | 2.1 |
A refined copper shortfall of 150,000 tonnes by 2026 highlights the importance of strategic material choices. By integrating C5191 into your design, you ensure efficiency, durability, and cost-effectiveness in ess applications.
Tip: Choosing C5191 phosphor bronze strips today positions you for success in tomorrow’s high-performance markets.
FAQ
What is C5191 phosphor bronze?
C5191 phosphor bronze is a high-performance alloy known for its excellent electrical conductivity, mechanical strength, and corrosion resistance. It is widely used in high-current applications, particularly in energy storage systems and battery connectors.
Why is conductivity important in high-current applications?
High conductivity reduces energy loss during current flow. In high-current applications, like energy storage systems, efficient conductivity ensures optimal performance and stability, minimizing heat generation and enhancing overall system efficiency.
How does C5191 compare to other copper alloys?
C5191 outperforms many copper alloys in conductivity and mechanical strength. For instance, it has a conductivity of 14% IACS, while standard phosphor bronze typically ranges from 12-13% IACS, making C5191 a superior choice for demanding applications.
What are the main benefits of using C5191 in energy storage systems?
C5191 offers durability, flexibility, and corrosion resistance, ensuring long-lasting performance in energy storage systems. Its mechanical strength supports reliable connections, while its conductivity enhances energy efficiency, making it ideal for high-current applications.
How does C5191’s corrosion resistance impact its lifespan?
C5191’s superior corrosion resistance protects it from environmental factors, extending its lifespan in harsh conditions. This durability reduces maintenance needs and replacement costs, making it a cost-effective choice for energy storage connectors.
